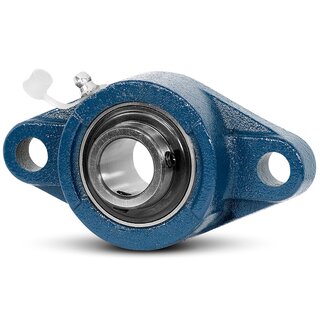

Flange Bearing / Flange Housing Unit UCFL201 - Shaft: 12 mm

The flange bearing UCFL201 is suitable for high radial loads and for installation in various applications. It is particularly robust with its gray cast iron housing. The adapter sleeve required for mounting the bearing insert is included.

Technical Data

Inside (mm):	12
Tolerance for inside (mm):	0,015/0
Shaft Fastening:	Grub Screws
Housing Type:	Flange
Grub Screw:	M6
Bearing No.:	UC 201
Housing No.:	FL 204
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Housing Material:	Cast Iron
Tolerance Class:	ABEC 1 / P0
Number of Mounting Holes:	2
Tolerance for width Bi (mm):	0/-0,12
Product weight:	0,4900 kg

Item number: UCFL201

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 6.09
