Technical Scribble

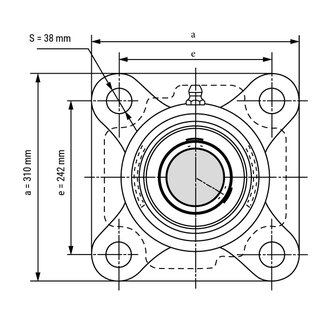

Flange Bearing / Flange Housing Unit UCF320 - Shaft: 100 mm
The flange bearing UCF320 is suitable for very high radial loads and for installation in various applications. It is particularly robust with its gray cast iron housing.
Technical Data
| Inside (mm): | 100 |
| Tolerance for inside (mm): | 0,028/0 |
| Shaft Fastening: | Grub Screws |
| Housing Type: | Flange |
| Grub Screw: | M18 |
| Bearing No.: | UC 320 |
| Housing No.: | F 320 |
| Ring Material: | Rolling bearing steel |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Sheet Steel |
| Housing Material: | Cast Iron |
| Tolerance Class: | ABEC 1 / P0 |
| Recommended tightening torque for housing attachment (Nm): | 75 |
| Number of Mounting Holes: | 4 |
| Tolerance for width Bi (mm): | 0/-0,2 |
| Product weight: | 25,3000 kg |
Item number: UCF320
If your demand is large, please contact us for quotation and delivery time.
Delivery time:3 to 7 business day
$ 451.44
pcs
