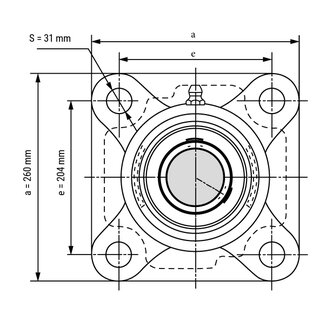

Technical Scribble
Flange Bearing / Flange Housing Unit UCF317 - Shaft: 85 mm
The flange bearing UCF317 is suitable for very high radial loads and for installation in various applications. It is particularly robust with its gray cast iron housing.
Technical Data
| Inside (mm): | 85 |
| Tolerance for inside (mm): | 0,028/0 |
| Shaft Fastening: | Grub Screws |
| Housing Type: | Flange |
| Grub Screw: | M16 |
| Bearing No.: | UC 317 |
| Housing No.: | F 317 |
| Ring Material: | Rolling bearing steel |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Sheet Steel |
| Housing Material: | Cast Iron |
| Tolerance Class: | ABEC 1 / P0 |
| Recommended tightening torque for housing attachment (Nm): | 64 |
| Number of Mounting Holes: | 4 |
| Tolerance for width Bi (mm): | 0/-0,2 |
| Product weight: | 15,2000 kg |
Item number: UCF317
If your demand is large, please contact us for quotation and delivery time.
Delivery time:3 to 7 business day
$ 161.73
pcs
Technical Scribble
Technical Data
| Inside (mm): | 85 |
| Tolerance for inside (mm): | 0,028/0 |
| Shaft Fastening: | Grub Screws |
| Housing Type: | Flange |
| Grub Screw: | M16 |
| Bearing No.: | UC 317 |
| Housing No.: | F 317 |
| Ring Material: | Rolling bearing steel |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Sheet Steel |
| Housing Material: | Cast Iron |
| Tolerance Class: | ABEC 1 / P0 |
| Recommended tightening torque for housing attachment (Nm): | 64 |
| Number of Mounting Holes: | 4 |
| Tolerance for width Bi (mm): | 0/-0,2 |
| Product weight: | 15,2000 kg |
