Technical Scribble

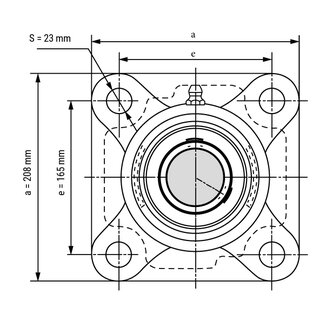

Flange Bearing / Flange Housing Unit UCF216 - Shaft: 80 mm
The flange bearing UCF216 is suitable for very high radial loads and for installation in various applications. It is particularly robust with its gray cast iron housing.
Technical Data
| Inside (mm): | 80 |
| Tolerance for inside (mm): | 0,024/0 |
| Shaft Fastening: | Grub Screws |
| Housing Type: | Flange |
| Grub Screw: | M12 |
| Bearing No.: | UC 216 |
| Housing No.: | F 216 |
| Ring Material: | Rolling bearing steel |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Sheet Steel |
| Housing Material: | Cast Iron |
| Tolerance Class: | ABEC 1 / P0 |
| Recommended tightening torque for housing attachment (Nm): | 33 |
| Number of Mounting Holes: | 4 |
| Tolerance for width Bi (mm): | 0/-0,15 |
| Product weight: | 7,5000 kg |
Item number: UCF216
If your demand is large, please contact us for quotation and delivery time.
Delivery time:3 to 7 business day
$ 61.46
pcs
Technical Scribble
Technical Data
| Inside (mm): | 80 |
| Tolerance for inside (mm): | 0,024/0 |
| Shaft Fastening: | Grub Screws |
| Housing Type: | Flange |
| Grub Screw: | M12 |
| Bearing No.: | UC 216 |
| Housing No.: | F 216 |
| Ring Material: | Rolling bearing steel |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Sheet Steel |
| Housing Material: | Cast Iron |
| Tolerance Class: | ABEC 1 / P0 |
| Recommended tightening torque for housing attachment (Nm): | 33 |
| Number of Mounting Holes: | 4 |
| Tolerance for width Bi (mm): | 0/-0,15 |
| Product weight: | 7,5000 kg |
