Radial Insert Ball Bearing UC318 - Shaft: 90 mm

The massive bearing insert UC318 can be easily attached to the shaft with the grub screws or inserted in a housing. It is suitable for high radial loads. Main dimensions according to DIN 626-1.

Technical Data

Inside (mm):	90110
Outside (mm):	190240
Width (mm):	4860
Tolerance for inside (mm):	0,028/0
Tolerance for outside (mm):	0/-0,03
Tolerance for width (mm):	0/-0,2
Rows Of Balls:	single row
Shaft Fastening:	Grub Screws
Grub Screw:	M16M18
Extended Inner Ring:	both sides
Seal:	2-peace sealing system
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Tolerance Class:	ABEC 1 / P0
Recommended tightening torque for housing attachment (Nm):	6475
Magnetic:	yes
Product weight:	8,0300 kg

Item number: UC318

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 98.05

pcs

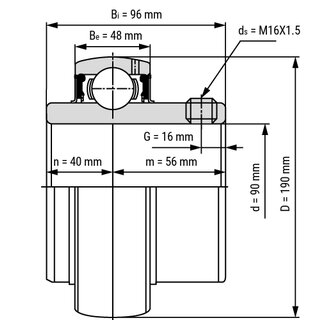

Technical Scribble
