Radial Insert Ball Bearing UC308 - Shaft: 40 mm

The massive bearing insert UC308 can be easily attached to the shaft with the grub screws or inserted in a housing. It is suitable for high radial loads. Main dimensions according to DIN 626-1.

Technical Data

Inside (mm):	40
Outside (mm):	90
Width (mm):	28
Tolerance for inside (mm):	0,021/0
Tolerance for outside (mm):	0/-0,015
Tolerance for width (mm):	0/-0,15
Rows Of Balls:	single row
Shaft Fastening:	Grub Screws
Grub Screw:	M10
Extended Inner Ring:	both sides
Seal:	2-peace sealing system
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Tolerance Class:	ABEC 1 / P0
Recommended tightening torque for housing attachment (Nm):	22
Magnetic:	yes
Product weight:	1,0500 kg

Item number: UC308

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 14.03

pcs

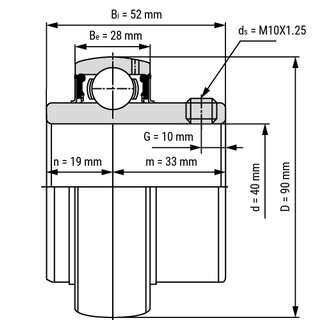

Technical Scribble
