Radial Insert Ball Bearing UC214 - Shaft: 70 mm

The bearing insert UC214 can be easily attached to the shaft with the grub screws or inserted in a housing. It is suitable for radial loads. Main dimensions according to DIN 626-1.

Technical Data

Inside (mm):	70
Outside (mm):	125
Width (mm):	29
Tolerance for inside (mm):	0,024/0
Tolerance for outside (mm):	0/-0,018
Tolerance for width (mm):	0/-0,15
Rows Of Balls:	single row
Shaft Fastening:	Grub Screws
Grub Screw:	M12
Extended Inner Ring:	both sides
Seal:	2-peace sealing system
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Tolerance Class:	ABEC 1 / P0
Recommended tightening torque for housing attachment (Nm):	33
Magnetic:	yes
Product weight:	1,9900 kg

Item number: UC214

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 21.85

pcs

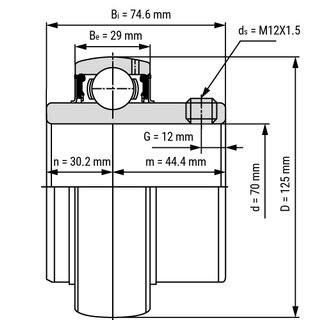

Technical Scribble

Technical Data

Inside (mm):	70
Outside (mm):	125
Width (mm):	29
Tolerance for inside (mm):	0,024/0
Tolerance for outside (mm):	0/-0,018
Tolerance for width (mm):	0/-0,15
Rows Of Balls:	single row
Shaft Fastening:	Grub Screws
Grub Screw:	M12
Extended Inner Ring:	both sides
Seal:	2-peace sealing system
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Tolerance Class:	ABEC 1 / P0
Recommended tightening torque for housing attachment (Nm):	33
Magnetic:	yes
Product weight:	1,9900 kg
