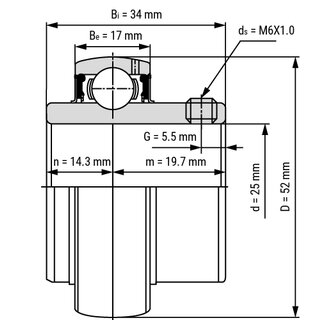

Technical Scribble
Radial Insert Ball Bearing UC205 - Shaft: 25 mm
The bearing insert UC205 can be easily attached to the shaft with the grub screws or inserted in a housing. It is suitable for radial loads. Main dimensions according to DIN 626-1.
Technical Data
| Inside (mm): | 25 |
| Outside (mm): | 52 |
| Width (mm): | 17 |
| Tolerance for inside (mm): | 0,018/0 |
| Tolerance for outside (mm): | 0/-0,013 |
| Tolerance for width (mm): | 0/-0,12 |
| Rows Of Balls: | single row |
| Shaft Fastening: | Grub Screws |
| Grub Screw: | M6 |
| Extended Inner Ring: | both sides |
| Seal: | 2-peace sealing system |
| Ring Material: | Rolling bearing steel |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Sheet Steel |
| Tolerance Class: | ABEC 1 / P0 |
| Magnetic: | yes |
| Product weight: | 0,2000 kg |
Item number: UC205
If your demand is large, please contact us for quotation and delivery time.
Delivery time:3 to 7 business day
$ 3.75
pcs
Technical Scribble
Technical Data
| Inside (mm): | 25 |
| Outside (mm): | 52 |
| Width (mm): | 17 |
| Tolerance for inside (mm): | 0,018/0 |
| Tolerance for outside (mm): | 0/-0,013 |
| Tolerance for width (mm): | 0/-0,12 |
| Rows Of Balls: | single row |
| Shaft Fastening: | Grub Screws |
| Grub Screw: | M6 |
| Extended Inner Ring: | both sides |
| Seal: | 2-peace sealing system |
| Ring Material: | Rolling bearing steel |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Sheet Steel |
| Tolerance Class: | ABEC 1 / P0 |
| Magnetic: | yes |
| Product weight: | 0,2000 kg |
