Rod End - Requiring Maintenance TSM20 open 20x50x25 mm

The rod end TSM20 without seals requires maintenance and has a sliding contact surface combination steel/bronze with good emergency running characteristics. It is suitable for static loads as well as for shock loads and has an external thread. The main dimensions correspond to DIN 648 (DIN = German industrial norm).

Technical Data

Inside (mm):	20
Outside (mm):	50
Width (mm):	25
Tolerance for inside (mm):	0,021/0
Tolerance for width (mm):	0/-0,12
Seal:	open
Ring Material:	Rolling bearing steel
Maintenance:	Requiring Maintenance
Tolerance Class:	ABEC 1 / P0
Mounting:	external thread (right thread)
Sliding Contact Surface Combination:	steel/bronze
Product weight:	0,3400 kg

Item number: TSM20

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 14.40

pcs

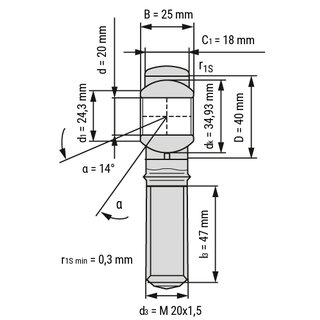

Technical Scribble
