Rod End - Maintenance Free TSM16C open 16x42x21 mm

The rod end TSM16C without seals has a sliding contact surface combination hard chrome/PTFE that is particularly suitable for loads where low friction is needed. It has an external thread. The main dimensions correspond to DIN 648 (DIN = German industrial norm).

Technical Data

Inside (mm):	16
Outside (mm):	42
Width (mm):	21
Tolerance for inside (mm):	0,018/0
Tolerance for width (mm):	0/-0,12
Seal:	open
Ring Material:	Rolling bearing steel
Maintenance:	Maintenance Free
Tolerance Class:	ABEC 1 / P0
Mounting:	external thread (right thread)
Sliding Contact Surface Combination:	PTFE/chrome steel
Product weight:	0,1800 kg

Item number: TSM16C

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 9.08

pcs

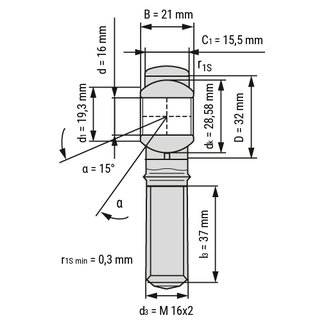

Technical Scribble

Technical Data

Inside (mm):	16
Outside (mm):	42
Width (mm):	21
Tolerance for inside (mm):	0,018/0
Tolerance for width (mm):	0/-0,12
Seal:	open
Ring Material:	Rolling bearing steel
Maintenance:	Maintenance Free
Tolerance Class:	ABEC 1 / P0
Mounting:	external thread (right thread)
Sliding Contact Surface Combination:	PTFE/chrome steel
Product weight:	0,1800 kg

Technical Scribble
