Rod End T.P.N.330 for Hydraulic Components - Requiring Maintenance 30x65x28 mm

The rod end T.P.N.330 for hydraulic components without seal requires maintenance and has a welding end. It has a sliding contact surface combination steel/steel and is suitable for heavy static loads as well as for shock loads. The main dimensions correspond to DIN 648 (DIN = German industrial norm).

Technical Data

Inside (mm):	30
Outside (mm):	65
Width (mm):	28
Tolerance for inside (mm):	0/-0,01
Tolerance for width (mm):	0/-0,12
Seal:	open
Ring Material:	Rolling bearing steel
Maintenance:	Requiring Maintenance
Tolerance Class:	ABEC 1 / P0
Mounting:	welding end rectangular
Sliding Contact Surface Combination:	steel/steel
Product weight:	0,8500 kg

Item number: T.P.N.330

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 13.12

pcs

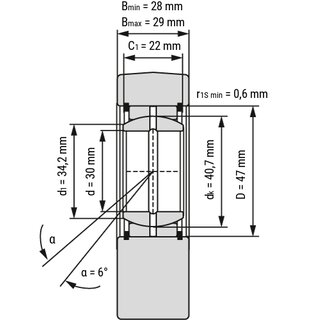

Technical Scribble
