Rod End T.A.C.225 for Hydraulic Components - Requiring Maintenance 25x64x20 mm

The rod end T.A.C.225 for hydraulic components without seal requires maintenance and has a welding end. It has a sliding contact surface combination steel/steel and is suitable for heavy static loads as well as for shock loads. The main dimensions correspond to DIN 648 (DIN = German industrial norm).

Technical Data

Inside (mm):	25
Outside (mm):	64
Width (mm):	20
Tolerance for inside (mm):	0/-0,01
Tolerance for width (mm):	0/-0,12
Seal:	open
Ring Material:	Rolling bearing steel
Maintenance:	Requiring Maintenance
Tolerance Class:	ABEC 1 / P0
Mounting:	welding end circular
Sliding Contact Surface Combination:	steel/steel
Product weight:	0,4300 kg

Item number: T.A.C.225

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 21.17

pcs

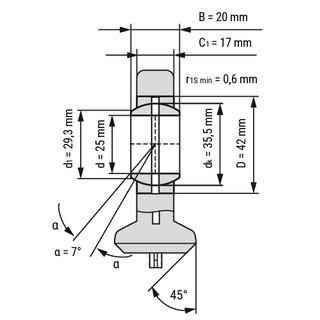

Technical Scribble

Technical Data

Inside (mm):	25
Outside (mm):	64
Width (mm):	20
Tolerance for inside (mm):	0/-0,01
Tolerance for width (mm):	0/-0,12
Seal:	open
Ring Material:	Rolling bearing steel
Maintenance:	Requiring Maintenance
Tolerance Class:	ABEC 1 / P0
Mounting:	welding end circular
Sliding Contact Surface Combination:	steel/steel
Product weight:	0,4300 kg
