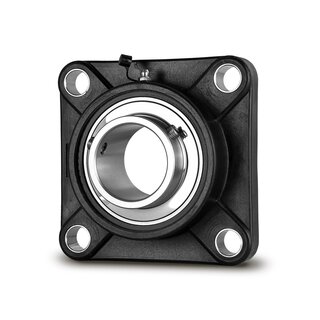

Plastic Flange Bearing / Flange Housing Unit SS UCFPL210 / TUCF210 - Shaft: 50 mm

The flange bearing SS-UCFPL210 is suitable for very high radial loads and for installation in various applications. It is hygienic and corrosion resistant with its plastic housing and stainless steel bearing insert.

Technical Data

Inside (mm):	50
Tolerance for inside (mm):	0,021/0
Shaft Fastening:	Grub Screws
Housing Type:	Flange
Grub Screw:	M10
Bearing No.:	SSUC 210
Housing No.:	FPL 210
Ring Material:	Stainless Steel
Rolling Element Material:	Stainless Steel
Cage Material:	Stainless Steel
Housing Material:	Plastic
Tolerance Class:	ABEC 1 / P0
Recommended tightening torque for housing attachment (Nm):	22
Number of Mounting Holes:	4
Tolerance for width Bi (mm):	0/-0,12
Product weight:	1,3900 kg

Item number: SS-UCFPL210

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 77.44

pcs

Technical Scribble

Technical Data

Inside (mm):	50
Tolerance for inside (mm):	0,021/0
Shaft Fastening:	Grub Screws
Housing Type:	Flange
Grub Screw:	M10
Bearing No.:	SSUC 210
Housing No.:	FPL 210
Ring Material:	Stainless Steel
Rolling Element Material:	Stainless Steel
Cage Material:	Stainless Steel
Housing Material:	Plastic
Tolerance Class:	ABEC 1 / P0
Recommended tightening torque for housing attachment (Nm):	22
Number of Mounting Holes:	4
Tolerance for width Bi (mm):	0/-0,12
Product weight:	1,3900 kg
