Stainless Steel Flange Bearing / Flange Housing Unit SS UCFL209 - Shaft: 45 mm

The flange bearing SS-UCFL209 is suitable for high radial loads and installations in various scenarios. It is hygienic and corrosion resistant with its stainless steel housing and stainless steel bearing insert.

Technical Data

Inside (mm):	45
Tolerance for inside (mm):	0,021/0
Shaft Fastening:	Grub Screws
Housing Type:	Flange
Grub Screw:	M8
Bearing No.:	SSUC 209
Housing No.:	SSFL 209
Ring Material:	Stainless Steel
Rolling Element Material:	Stainless Steel
Cage Material:	Stainless Steel
Housing Material:	Stainless Steel
Tolerance Class:	ABEC 1 / P0
Number of Mounting Holes:	2
Tolerance for width Bi (mm):	0/-0,12
Product weight:	1,9000 kg

Item number: SS-UCFL209

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 76.31

pcs

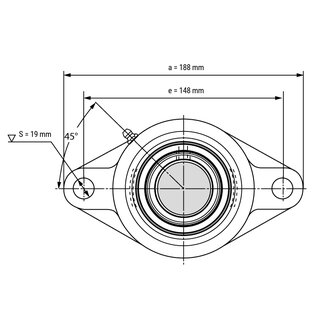

Technical Scribble
