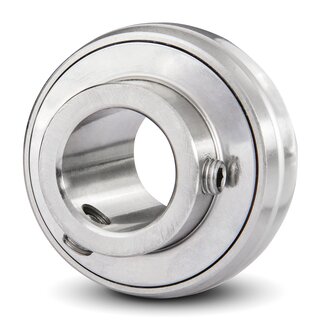

Stainless Steel Radial Insert Ball Bearing SS UC216 - Shaft: 80 mm

The stainless steel bearing insert SS-UC216 can be easily attached to the shaft with the grub screws or inserted in a housing. It is suitable for radial loads and is resistant to corrosion. Main dimensions according to DIN 626-1.

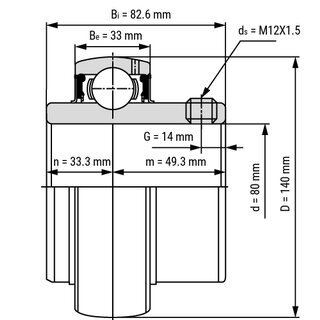

Technical Data

Inside (mm):	80
Outside (mm):	140
Width (mm):	33
Tolerance for inside (mm):	0,024/0
Tolerance for outside (mm):	0/-0,018
Tolerance for width (mm):	0/-0,15
Rows Of Balls:	single row
Shaft Fastening:	Grub Screws
Grub Screw:	M12
Extended Inner Ring:	both sides
Ring Material:	Stainless Steel
Rolling Element Material:	Stainless Steel
Cage Material:	Stainless Steel
Tolerance Class:	ABEC 1 / P0
Recommended tightening torque for housing attachment (Nm):	33
Magnetic:	yes
Product weight:	2,7200 kg

Item number: SS-UC216

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 353.76

pcs
