Stainless Steel Radial Insert Ball Bearing SS UC210 - Shaft: 50 mm

The stainless steel bearing insert SS-UC210 can be easily attached to the shaft with the grub screws or inserted in a housing. It is suitable for radial loads and is resistant to corrosion. Main dimensions according to DIN 626-1.

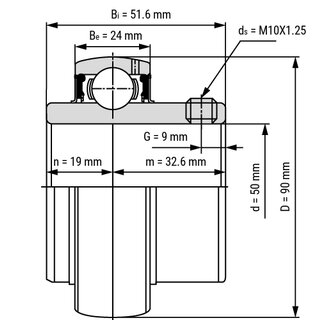

Technical Data

Inside (mm):	50
Outside (mm):	90
Width (mm):	24
Tolerance for inside (mm):	0,021/0
Tolerance for outside (mm):	0/-0,015
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	single row
Shaft Fastening:	Grub Screws
Grub Screw:	M10
Extended Inner Ring:	both sides
Ring Material:	Stainless Steel
Rolling Element Material:	Stainless Steel
Cage Material:	Stainless Steel
Tolerance Class:	ABEC 1 / P0
Recommended tightening torque for housing attachment (Nm):	22
Magnetic:	yes
Product weight:	0,7900 kg

Item number: SS-UC210

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 45.81

pcs
