- SS-UC208-24

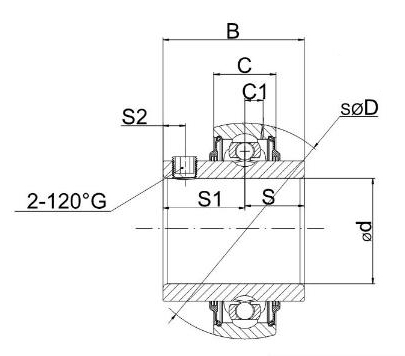

Technical Scribble
SS-UC208-24 xx
Technical Data
| Specifications | |
| Unit Number | Ssuc208 24 |
| Bearing Number | SSUC208-24 |
| Shaft Size | 1-1/2 in |
| Weight | 0.68kg 1.5 lb |
| Set Screw Size | 5/16-24UNF |
| Locking Style | Set Screw Locking |
| Dimensions | |
| D | 80.0 mm 3.150 in |
| B | 49.2 mm 1.937 in |
| C | 21.0 mm 0.827 in |
| r(min.) | 1.1 mm 0.043 in |
| C1 | 6.0 mm 0.236 in |
| S | 19.0 mm 0.748 in |
| S1 | 30.2 mm 1.189 in |
| S2 | 8.0 mm 0.315 in |
| Basic Load Rating | |
| Cr | 29.1 kN 64.2 lb |
| Cor | 17.8 kN 39.2 lb |
| Factor fo | 14.0 |
Item number: SS-UC208-24
If your demand is large, please contact us for quotation and delivery time.
Delivery time:3 to 7 business day
$ 32.50
pcs
Technical Scribble
Technical Data
| Specifications | |
| Unit Number | Ssuc208 24 |
| Bearing Number | SSUC208-24 |
| Shaft Size | 1-1/2 in |
| Weight | 0.68kg 1.5 lb |
| Set Screw Size | 5/16-24UNF |
| Locking Style | Set Screw Locking |
| Dimensions | |
| D | 80.0 mm 3.150 in |
| B | 49.2 mm 1.937 in |
| C | 21.0 mm 0.827 in |
| r(min.) | 1.1 mm 0.043 in |
| C1 | 6.0 mm 0.236 in |
| S | 19.0 mm 0.748 in |
| S1 | 30.2 mm 1.189 in |
| S2 | 8.0 mm 0.315 in |
| Basic Load Rating | |
| Cr | 29.1 kN 64.2 lb |
| Cor | 17.8 kN 39.2 lb |
| Factor fo | 14.0 |
