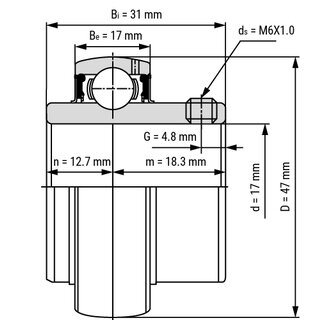

Stainless Steel Radial Insert Ball Bearing SS UC203 - Shaft: 17 mm

The stainless steel bearing insert SS-UC203 can be easily attached to the shaft with the grub screws or inserted in a housing. It is suitable for radial loads and is resistant to corrosion. Main dimensions according to DIN 626-1.

Technical Data

Inside (mm):	17
Outside (mm):	47
Width (mm):	17
Tolerance for inside (mm):	0,015/0
Tolerance for outside (mm):	0/-0,011
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	single row
Shaft Fastening:	Grub Screws
Grub Screw:	M6
Extended Inner Ring:	both sides
Ring Material:	Stainless Steel
Rolling Element Material:	Stainless Steel
Cage Material:	Stainless Steel
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,1800 kg

Item number: SS-UC203

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 13.87
