Stainless Steel Deep Groove Ball Bearing Inch SS R8 open oiled 12.7 x 28.575 x 7.94 mm

Lightweight, stable and with good spinning characteristics. The stainless steel deep groove ball bearing SS-R8 in inch-size is a true all-rounder and, due to its balanced properties, it is suitable for a variety of applications. It is resistant to corrosion. Main dimensions according to DIN 625-1.

Technical Data

Inside (mm):	12.7
Outside (mm):	28.575
Width (mm):	7.94
Tolerance for inside (mm):	0/-0,008
Tolerance for outside (mm):	0/-0,009
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	single row
Seal:	open
Internal Clearance:	CN (Standard)
Flange:	no
Slot & Snap Ring:	no
Ring Material:	Stainless Steel
Rolling Element Material:	Stainless Steel
Cage Material:	Stainless Steel
Full Complement Ball Set:	no
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	oiled
Magnetic:	yes
Product weight:	0,0200 kg

Item number: SS-R8-OIL

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 4.12

pcs

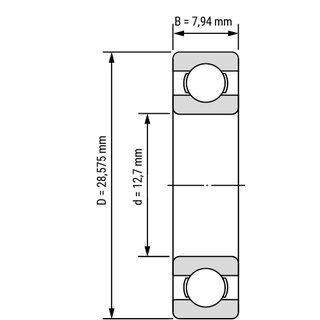

Technical Scribble
