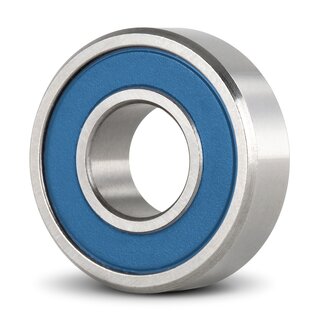

Stainless Steel Miniature Deep Groove Ball Bearing Inch SS R2A 2RS 3.175 x 12.7 x 4.366 mm

For use in special conditions. The stainless steel miniature ball bearing SS-R2A-2RS in inch-size is small and suitable for installation with limited space and on thin shafts. It can withstand very high speeds. It is resistant to corrosion.

Technical Data

Inside (mm):	3.175
Outside (mm):	12.7
Width (mm):	4.366
Tolerance for inside (mm):	0/-0,008
Tolerance for outside (mm):	0/-0,008
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	single row
Seal:	2RS
Internal Clearance:	CN (Standard)
Flange:	no
Slot & Snap Ring:	no
Ring Material:	Stainless Steel
Rolling Element Material:	Stainless Steel
Cage Material:	Stainless Steel
Sealing material:	NBR
Full Complement Ball Set:	no
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	greased
Magnetic:	yes
Lifetime lubricated:	yes
Product weight:	0,0031 kg

Item number: SS-R2A-2RS

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 1.51

pcs
