Stainless Steel Deep Groove Ball Bearing Inch SS R14 open dry 22.225 x 47.625 x 12.7 mm

Lightweight, stable and with good spinning characteristics. The stainless steel deep groove ball bearing SS-R14 in inch-size is a true all-rounder and, due to its balanced properties, it is suitable for a variety of applications. It is resistant to corrosion. Main dimensions according to DIN 625-1.

Technical Data

Inside (mm):	22.225
Outside (mm):	47.625
Width (mm):	12.7
Tolerance for inside (mm):	0/-0,01
Tolerance for outside (mm):	0/-0,011
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	single row
Seal:	open
Internal Clearance:	CN (Standard)
Flange:	no
Slot & Snap Ring:	no
Ring Material:	Stainless Steel
Rolling Element Material:	Stainless Steel
Cage Material:	Stainless Steel
Full Complement Ball Set:	no
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	dry
Magnetic:	yes
Product weight:	0,0400 kg

Item number: SS-R14-DRY

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 11.68

pcs

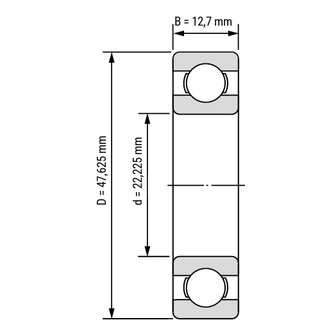

Technical Scribble

Technical Data

Inside (mm):	22.225
Outside (mm):	47.625
Width (mm):	12.7
Tolerance for inside (mm):	0/-0,01
Tolerance for outside (mm):	0/-0,011
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	single row
Seal:	open
Internal Clearance:	CN (Standard)
Flange:	no
Slot & Snap Ring:	no
Ring Material:	Stainless Steel
Rolling Element Material:	Stainless Steel
Cage Material:	Stainless Steel
Full Complement Ball Set:	no
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	dry
Magnetic:	yes
Product weight:	0,0400 kg

Technical Scribble

Stainless Steel Deep Groove Ball Bearing Inch SS R14 open dry 22.225 x 47.625 x 12.7 mm

Technical Data

Technical Scribble

Technical Data

SEND INQUIRY
