Stainless Steel Miniature Deep Groove Ball Bearing SS MR85 W2 open oiled 5x8x2 mm

For use in special conditions. The stainless steel miniature ball bearing SS-MR85-W2 is small and suitable for installation with limited space and on thin shafts. It can withstand very high speeds, has metric special dimensions and is resistant to corrosion.

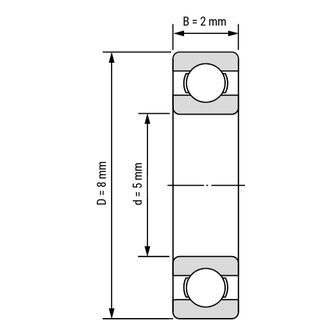

Technical Data

Inside (mm):	5
Outside (mm):	8
Width (mm):	2
Tolerance for inside (mm):	0/-0,008
Tolerance for outside (mm):	0/-0,008
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	single row
Seal:	open
Internal Clearance:	CN (Standard)
Flange:	no
Slot & Snap Ring:	no
Ring Material:	Stainless Steel
Rolling Element Material:	Stainless Steel
Cage Material:	Stainless Steel
Full Complement Ball Set:	no
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	oiled
Magnetic:	yes
Product weight:	0,0003 kg

Item number: SS-MR-85-W2-OIL

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 1.78

pcs
