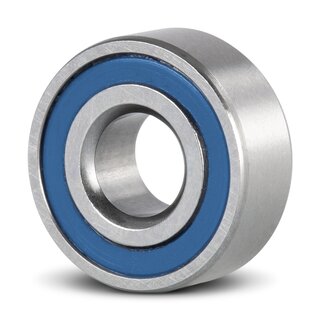

Stainless Steel Miniature Deep Groove Ball Bearing SS MR52 2RS 2x5x2.5 mm

For use in special conditions. The stainless steel miniature ball bearing SS-MR52-2RS is small and suitable for installation with limited space and on thin shafts. It can withstand very high speeds, has metric special dimensions and is resistant to corrosion.

Technical Data

Inside (mm):	2
Outside (mm):	5
Width (mm):	2.5
Tolerance for inside (mm):	0/-0,008
Tolerance for outside (mm):	0/-0,008
Tolerance for width (mm):	0/-0,04
Rows Of Balls:	single row
Seal:	2RS
Internal Clearance:	CN (Standard)
Flange:	no
Slot & Snap Ring:	no
Ring Material:	Stainless Steel
Rolling Element Material:	Stainless Steel
Cage Material:	Stainless Steel
Sealing material:	NBR
Full Complement Ball Set:	no
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	greased
Magnetic:	yes
Lifetime lubricated:	yes
Product weight:	0,0001 kg

Item number: SS-MR-52-2RS

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 2.12

pcs
