Technical Scribble

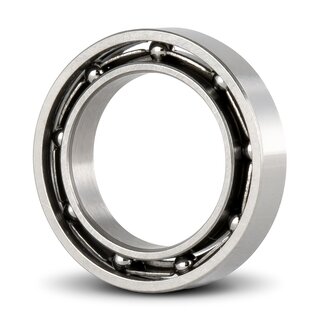

High Precision Miniature Ball Bearing SS MR106 W2.5 CN V2 P6 AF12 6x10x2.5 mm
The open precision miniature ball bearing SS-MR-106-W2.5-CN-V2-P6-AF12 made of stainless steel meets even the highest demands. It is versatile and can carry radial and light axial loads. Due to the open design even higher speeds than with comparable miniature ball bearings with seal are possible. The main dimensions correspond to DIN 625-1.
Technical Data
| Inside (mm): | 6 |
| Outside (mm): | 10 |
| Width (mm): | 2.5 |
| Tolerance for inside (mm): | 0/-0,007 |
| Tolerance for outside (mm): | 0/-0,007 |
| Tolerance for width (mm): | 0/-0,12 |
| Rows Of Balls: | single row |
| Seal: | open |
| Internal Clearance: | CN (Standard) |
| Flange: | no |
| Slot & Snap Ring: | no |
| Ring Material: | Stainless Steel |
| Rolling Element Material: | Stainless Steel |
| Cage Material: | Stainless Steel |
| Full Complement Ball Set: | no |
| Tolerance Class: | ABEC 3 / P6 |
| Vibration and Noise: | V2 |
| Lubrication: | AF-12 |
| Type of lubrication: | oiled |
| Magnetic: | yes |
| Product weight: | 0,0006 kg |
Item number: SS-MR-106-W2.5-CN-V2-P6-AF12
If your demand is large, please contact us for quotation and delivery time.
Delivery time:3 to 7 business day
$ 2.97
