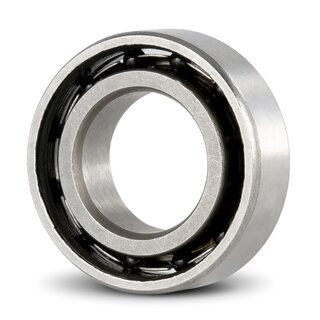

Ceramics / Hybrid Stainless Steel Miniature Deep Groove Ball Bearing SS C MR83 W2.5 open oiled 3x8x2.5 mm

The hybrid miniature ball bearing SS-C-MR83-W2.5 has excellent properties due to the ceramic rolling elements. It is small and suitable for installation with limited space and on thin shafts. It can withstand extremely high speeds and has metric special dimensions.

Technical Data

Inside (mm):	3
Outside (mm):	8
Width (mm):	2.5
Tolerance for inside (mm):	0/-0,008
Tolerance for outside (mm):	0/-0,008
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	single row
Seal:	open
Flange:	no
Slot & Snap Ring:	no
Ring Material:	Stainless Steel
Rolling Element Material:	Ceramics
Cage Material:	Stainless Steel
Full Complement Ball Set:	no
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	oiled
Magnetic:	yes
Product weight:	0,0060 kg

Item number: SS-C-MR-83-W2.5-OIL

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 4.63

pcs
