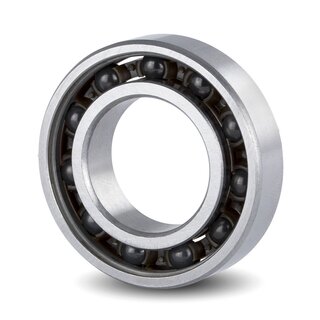

Ceramics / Hybrid Stainless Steel Deep Groove Ball Bearing SS C 6904 TN open / SS C 61904 TN open dry 20x37x9 mm

The hybrid deep groove ball bearing SS-C-6904-TN has excellent properties due to the ceramic rolling elements. It is narrow and can also be used in a limited space. The low weight allows very high speeds.

Technical Data

Inside (mm):	20
Outside (mm):	37
Width (mm):	9
Tolerance for inside (mm):	0/-0,01
Tolerance for outside (mm):	0/-0,011
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	single row
Seal:	open
Flange:	no
Slot & Snap Ring:	no
Ring Material:	Stainless Steel
Rolling Element Material:	Ceramics
Cage Material:	Plastic
Full Complement Ball Set:	no
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	dry
Magnetic:	yes
Product weight:	0,0302 kg

Item number: SS-C-6904-TN-DRY

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 16.55

pcs

Technical Scribble

Technical Data

Inside (mm):	20
Outside (mm):	37
Width (mm):	9
Tolerance for inside (mm):	0/-0,01
Tolerance for outside (mm):	0/-0,011
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	single row
Seal:	open
Flange:	no
Slot & Snap Ring:	no
Ring Material:	Stainless Steel
Rolling Element Material:	Ceramics
Cage Material:	Plastic
Full Complement Ball Set:	no
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	dry
Magnetic:	yes
Product weight:	0,0302 kg

Technical Scribble

Ceramics / Hybrid Stainless Steel Deep Groove Ball Bearing SS C 6904 TN open / SS C 61904 TN open dry 20x37x9 mm

Technical Data

Technical Scribble

Technical Data

SEND INQUIRY
