Technical Scribble

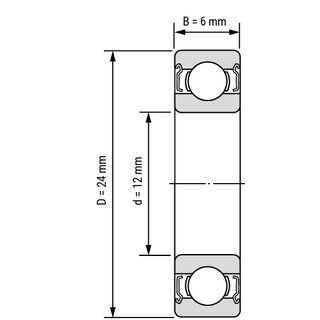

High Precision Deep Groove Ball Bearing SS-C-6901-ZZ / 2Z-CN-V2-P6-SRL 12x24x6 mm
The hybrid deep groove ball bearing SS-C-6901-ZZ / 2Z-CN-V2-P6-SRL has excellent properties due to the ceramic rolling elements. It is very narrow and can also be used in a limited space. The low weight allows extremely high speeds.
Technical Data
| Inside (mm): | 12 |
| Outside (mm): | 24 |
| Width (mm): | 6 |
| Tolerance for inside (mm): | 0/-0,007 |
| Tolerance for outside (mm): | 0/-0,008 |
| Tolerance for width (mm): | 0/-0,12 |
| Rows Of Balls: | single row |
| Seal: | ZZ |
| Internal Clearance: | CN (Standard) |
| Flange: | no |
| Slot & Snap Ring: | no |
| Ring Material: | Stainless Steel |
| Rolling Element Material: | Ceramics |
| Cage Material: | Stainless Steel |
| Sealing material: | Stainless Sheet Steel |
| Full Complement Ball Set: | no |
| Tolerance Class: | ABEC 3 / P6 |
| Vibration and Noise: | V2 |
| Type of lubrication: | greased |
| Magnetic: | yes |
| Product weight: | 0,0097 kg |
Item number: SS-C-6901-ZZ-CN-V2-P6-SRL
If your demand is large, please contact us for quotation and delivery time.
Delivery time:3 to 7 business day
$ 9.65
pcs
Technical Scribble
Technical Data
| Inside (mm): | 12 |
| Outside (mm): | 24 |
| Width (mm): | 6 |
| Tolerance for inside (mm): | 0/-0,007 |
| Tolerance for outside (mm): | 0/-0,008 |
| Tolerance for width (mm): | 0/-0,12 |
| Rows Of Balls: | single row |
| Seal: | ZZ |
| Internal Clearance: | CN (Standard) |
| Flange: | no |
| Slot & Snap Ring: | no |
| Ring Material: | Stainless Steel |
| Rolling Element Material: | Ceramics |
| Cage Material: | Stainless Steel |
| Sealing material: | Stainless Sheet Steel |
| Full Complement Ball Set: | no |
| Tolerance Class: | ABEC 3 / P6 |
| Vibration and Noise: | V2 |
| Type of lubrication: | greased |
| Magnetic: | yes |
| Product weight: | 0,0097 kg |
