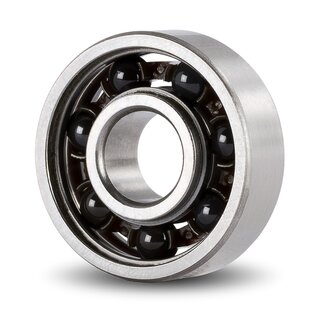

Ceramics / Hybrid Stainless Steel Miniature Deep Groove Ball Bearing SS C 682 W1.5 open TN dry 2x5x1.5 mm

The hybrid miniature ball bearing SS-C-682-W1.5-TN has excellent properties due to the ceramic rolling elements. It is small and suitable for installation with limited space and on thin shafts. It can withstand very high speeds. Main dimensions according to DIN 625-1.

Technical Data

Inside (mm):	2
Outside (mm):	5
Width (mm):	1.5
Tolerance for inside (mm):	0/-0,008
Tolerance for outside (mm):	0/-0,008
Tolerance for width (mm):	0/-0,04
Rows Of Balls:	single row
Seal:	open
Flange:	no
Slot & Snap Ring:	no
Ring Material:	Stainless Steel
Rolling Element Material:	Ceramics
Cage Material:	Plastic
Full Complement Ball Set:	no
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	dry
Magnetic:	yes
Product weight:	0,0001 kg

Item number: SS-C-682-W1.5-TN-DRY

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 10.07

pcs
