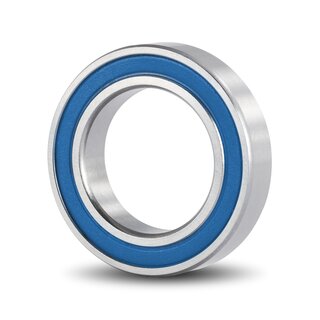

High Precision Deep Groove Ball Bearing SS-C-6801-2RS-CN-P6-SRL 12x21x5 mm

The hybrid deep groove ball bearing SS-C-6801-2RS-TN-CN-V2-P6-SRL has excellent properties due to its ceramic rolling elements. Compared to a metal bearing, it has higher wear resistance and a lower operating temperature at the same speed. It is very narrow and can also be used in a limited space. The low weight allows extremely high speeds. Main dimensions according to DIN 625-1.

Technical Data

Inside (mm):	12
Outside (mm):	21
Width (mm):	5
Tolerance for inside (mm):	0/-0,007
Tolerance for outside (mm):	0/-0,008
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	single row
Seal:	2RS
Slot & Snap Ring:	no
Ring Material:	Stainless Steel
Rolling Element Material:	Ceramics
Cage Material:	Stainless Steel
Sealing material:	NBR
Full Complement Ball Set:	no
Tolerance Class:	ABEC 3 / P6
Type of lubrication:	greased
Magnetic:	yes
Product weight:	0,0056 kg

Item number: SS-C-6801-2RS-CN-P6-SRL

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 8.90

pcs

Technical Scribble

Technical Data

Inside (mm):	12
Outside (mm):	21
Width (mm):	5
Tolerance for inside (mm):	0/-0,007
Tolerance for outside (mm):	0/-0,008
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	single row
Seal:	2RS
Slot & Snap Ring:	no
Ring Material:	Stainless Steel
Rolling Element Material:	Ceramics
Cage Material:	Stainless Steel
Sealing material:	NBR
Full Complement Ball Set:	no
Tolerance Class:	ABEC 3 / P6
Type of lubrication:	greased
Magnetic:	yes
Product weight:	0,0056 kg
