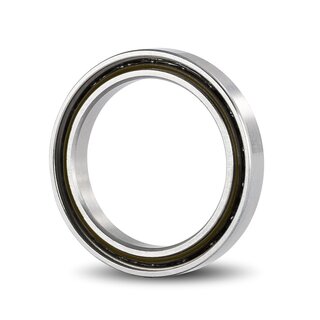

Ceramics / Hybrid Stainless Steel Deep Groove Ball Bearing SS C 6704 open / SS C 61704 open oiled 20x27x4 mm

The hybrid deep groove ball bearing SS-C-6704 has excellent properties due to the ceramic rolling elements. It is extremely narrow and can also be used with limited space. The low weight allows for utmost high speeds.

Technical Data

Inside (mm):	20
Outside (mm):	27
Width (mm):	4
Tolerance for inside (mm):	0/-0,01
Tolerance for outside (mm):	0/-0,009
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	single row
Seal:	open
Flange:	no
Slot & Snap Ring:	no
Ring Material:	Stainless Steel
Rolling Element Material:	Ceramics
Cage Material:	Stainless Steel
Full Complement Ball Set:	no
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	oiled
Magnetic:	yes
Product weight:	0,0047 kg

Item number: SS-C-6704-OIL

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 13.17
