Ceramics / Hybrid Stainless Steel Deep Groove Ball Bearing SS C 63803 TN open oiled 17x26x7 mm

The hybrid deep groove ball bearing SS-C-63803-TN has excellent properties due to the ceramic rolling elements. It is the wider version of the 68 series. It is particularly suitable for achieving a good load capacity in extremely limited space conditions. Main dimensions according to DIN 625-1.

Technical Data

Inside (mm):	17
Outside (mm):	26
Width (mm):	7
Tolerance for inside (mm):	0/-0,008
Tolerance for outside (mm):	0/-0,009
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	single row
Seal:	open
Flange:	no
Slot & Snap Ring:	no
Ring Material:	Stainless Steel
Rolling Element Material:	Ceramics
Cage Material:	Plastic
Full Complement Ball Set:	no
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	oiled
Magnetic:	yes
Product weight:	0,0905 kg

Item number: SS-C-63803-TN-OIL

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 16.36

pcs

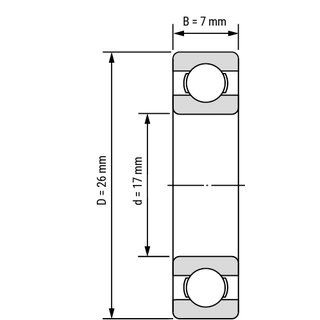

Technical Scribble

Technical Data

Inside (mm):	17
Outside (mm):	26
Width (mm):	7
Tolerance for inside (mm):	0/-0,008
Tolerance for outside (mm):	0/-0,009
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	single row
Seal:	open
Flange:	no
Slot & Snap Ring:	no
Ring Material:	Stainless Steel
Rolling Element Material:	Ceramics
Cage Material:	Plastic
Full Complement Ball Set:	no
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	oiled
Magnetic:	yes
Product weight:	0,0905 kg
