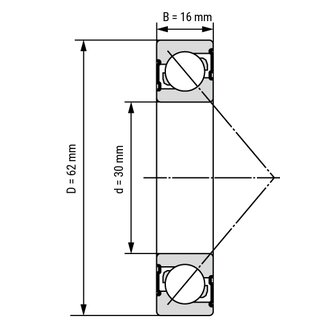

Stainless Steel Angular Ball Bearing SS 7206 B open TN 30x62x16 mm

The single row stainless steel angular contact ball bearing SS-7206-B-TN is ideal for combined loads from the radial and axial directions and is resistant to corrosion. Main dimensions according to DIN 628-3.

Technical Data

Inside (mm):	30
Outside (mm):	62
Width (mm):	16
Tolerance for inside (mm):	0/-0,01
Tolerance for outside (mm):	0/-0,013
Tolerance for width (mm):	0/-0,12
Contact Angle:	40
Rows Of Balls:	single row
Seal:	open
Ring Material:	Stainless Steel
Rolling Element Material:	Stainless Steel
Cage Material:	Plastic
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,2080 kg

Item number: SS-7206-B-TN

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 22.43

pcs

Technical Scribble

Technical Data

Inside (mm):	30
Outside (mm):	62
Width (mm):	16
Tolerance for inside (mm):	0/-0,01
Tolerance for outside (mm):	0/-0,013
Tolerance for width (mm):	0/-0,12
Contact Angle:	40
Rows Of Balls:	single row
Seal:	open
Ring Material:	Stainless Steel
Rolling Element Material:	Stainless Steel
Cage Material:	Plastic
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,2080 kg
