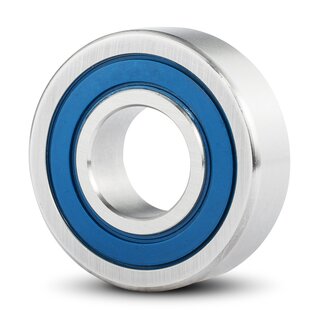

Stainless Steel Angular Ball Bearing SS 7204 B 2RS TN 20x47x14 mm

The single row stainless steel angular contact ball bearing SS-7204-B-2RS-TN is ideal for combined loads from the radial and axial directions and is resistant to corrosion. Main dimensions according to DIN 628-3.

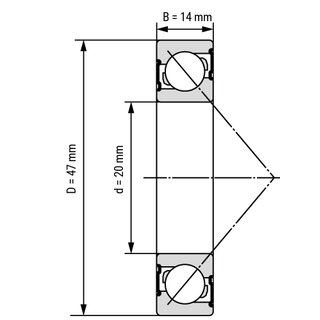

Technical Data

Inside (mm):	20
Outside (mm):	47
Width (mm):	14
Tolerance for inside (mm):	0/-0,01
Tolerance for outside (mm):	0/-0,011
Tolerance for width (mm):	0/-0,12
Contact Angle:	40
Rows Of Balls:	single row
Seal:	2RS
Ring Material:	Stainless Steel
Rolling Element Material:	Stainless Steel
Cage Material:	Plastic
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	greased
Magnetic:	yes
Lifetime lubricated:	yes
Product weight:	0,1040 kg

Item number: SS-7204-B-2RS-TN

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 15.61

pcs

Technical Scribble

Technical Data

Inside (mm):	20
Outside (mm):	47
Width (mm):	14
Tolerance for inside (mm):	0/-0,01
Tolerance for outside (mm):	0/-0,011
Tolerance for width (mm):	0/-0,12
Contact Angle:	40
Rows Of Balls:	single row
Seal:	2RS
Ring Material:	Stainless Steel
Rolling Element Material:	Stainless Steel
Cage Material:	Plastic
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	greased
Magnetic:	yes
Lifetime lubricated:	yes
Product weight:	0,1040 kg

Technical Scribble

Stainless Steel Angular Ball Bearing SS 7204 B 2RS TN 20x47x14 mm

Technical Data

Technical Scribble

Technical Data
