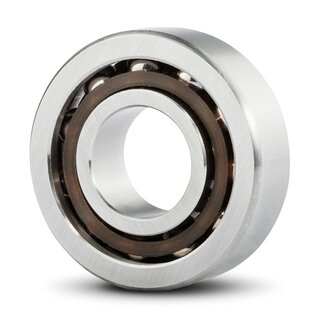

Stainless Steel Angular Ball Bearing SS 7204 B open 20x47x14 mm

The single row stainless steel angular contact ball bearing SS-7204-B is ideal for combined loads from the radial and axial directions and is resistant to corrosion. Main dimensions according to DIN 628-3.

Technical Data

Inside (mm):	20
Outside (mm):	47
Width (mm):	14
Tolerance for inside (mm):	0/-0,01
Tolerance for outside (mm):	0/-0,011
Tolerance for width (mm):	0/-0,12
Contact Angle:	40
Rows Of Balls:	single row
Seal:	open
Ring Material:	Stainless Steel
Rolling Element Material:	Stainless Steel
Cage Material:	Stainless Steel
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,1050 kg

Item number: SS-7204-B

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 15.61
