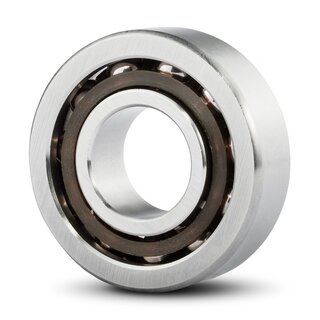

Stainless Steel Angular Ball Bearing SS 7200 B open TN 10x30x9 mm

The single row stainless steel angular contact ball bearing SS-7200-B-TN is ideal for combined loads from the radial and axial directions and is resistant to corrosion. Main dimensions according to DIN 628-3.

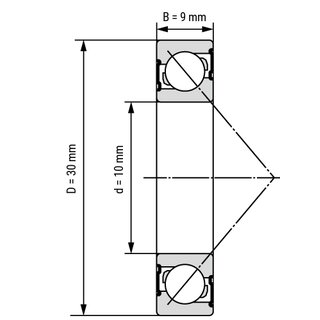

Technical Data

Inside (mm):	10
Outside (mm):	30
Width (mm):	9
Tolerance for inside (mm):	0/-0,008
Tolerance for outside (mm):	0/-0,009
Tolerance for width (mm):	0/-0,12
Contact Angle:	40
Rows Of Balls:	single row
Seal:	open
Ring Material:	Stainless Steel
Rolling Element Material:	Stainless Steel
Cage Material:	Plastic
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,0310 kg

Item number: SS-7200-B-TN

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day
