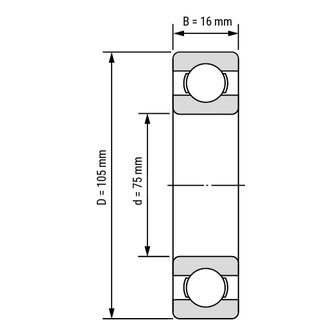

Stainless Steel Deep Groove Ball Bearing SS 6915 open / SS 61915 open oiled 75x105x16 mm

Narrow, light and with very good spinning characteristics. The stainless steel deep groove ball bearing SS-6915 is narrow, can also be used with limited space and is resistant to corrosion. The low weight allows for very high speeds.

Technical Data

Inside (mm):	75
Outside (mm):	105
Width (mm):	16
Tolerance for inside (mm):	0/-0,015
Tolerance for outside (mm):	0/-0,015
Tolerance for width (mm):	0/-0,15
Rows Of Balls:	single row
Seal:	open
Internal Clearance:	CN (Standard)
Flange:	no
Slot & Snap Ring:	no
Ring Material:	Stainless Steel
Rolling Element Material:	Stainless Steel
Cage Material:	Stainless Steel
Full Complement Ball Set:	no
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	oiled
Magnetic:	yes
Product weight:	0,3630 kg

Item number: SS-6915-OIL

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 80.59

pcs

Technical Scribble

Technical Data

Inside (mm):	75
Outside (mm):	105
Width (mm):	16
Tolerance for inside (mm):	0/-0,015
Tolerance for outside (mm):	0/-0,015
Tolerance for width (mm):	0/-0,15
Rows Of Balls:	single row
Seal:	open
Internal Clearance:	CN (Standard)
Flange:	no
Slot & Snap Ring:	no
Ring Material:	Stainless Steel
Rolling Element Material:	Stainless Steel
Cage Material:	Stainless Steel
Full Complement Ball Set:	no
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	oiled
Magnetic:	yes
Product weight:	0,3630 kg
