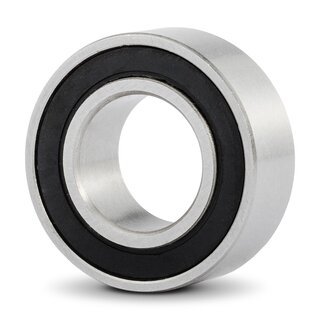

Stainless Steel Deep Groove Ball Bearing SS 63800 2RS 10x19x7 mm

The stainless steel deep groove ball bearing SS-63800-2RS is the wider version of the 68 series. It is particularly suitable for achieving a good load capacity in extremely limited space conditions. It is resistant to corrosion. Main dimensions according to DIN 625-1.

Technical Data

Inside (mm):	10
Outside (mm):	19
Width (mm):	7
Tolerance for inside (mm):	0/-0,008
Tolerance for outside (mm):	0/-0,009
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	single row
Seal:	2RS
Internal Clearance:	CN (Standard)
Flange:	no
Slot & Snap Ring:	no
Ring Material:	Stainless Steel
Rolling Element Material:	Stainless Steel
Cage Material:	Stainless Steel
Sealing material:	NBR
Full Complement Ball Set:	no
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	greased
Magnetic:	yes
Lifetime lubricated:	yes
Product weight:	0,0068 kg

Item number: SS-63800-2RS

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day
