Stainless Steel Deep Groove Ball Bearing SS 6214 open oiled 70x125x24 mm

Stable and with good spinning characteristics. The stainless steel deep groove ball bearing SS-6214 is a true all-rounder and, due to its balanced properties, it is suitable for a variety of applications and is resistant to corrosion. Main dimensions according to DIN 625-1.

Technical Data

Inside (mm):	70
Outside (mm):	125
Width (mm):	24
Tolerance for inside (mm):	0/-0,015
Tolerance for outside (mm):	0/-0,018
Tolerance for width (mm):	0/-0,15
Rows Of Balls:	single row
Seal:	open
Internal Clearance:	CN (Standard)
Flange:	no
Slot & Snap Ring:	no
Ring Material:	Stainless Steel
Rolling Element Material:	Stainless Steel
Cage Material:	Stainless Steel
Full Complement Ball Set:	no
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	oiled
Magnetic:	yes
Product weight:	1,0700 kg

Item number: SS-6214-OIL

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 60.88

pcs

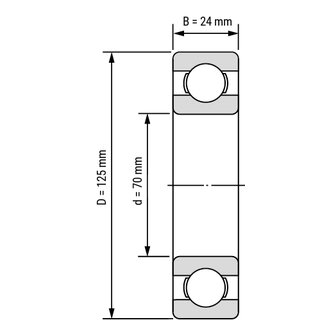

Technical Scribble
