Stainless Steel Angular Ball Bearing SS 5309 2RS / SS 3309 2RS 45x100x39.7 mm

Double row design for higher load capacity. The double-row stainless steel angular contact ball bearing SS-5309-2RS is ideal for high combined loads from the radial and axial directions and is resistant to corrosion. Main dimensions according to DIN 628-3.

Technical Data

Inside (mm):	45
Outside (mm):	100
Width (mm):	39.7
Tolerance for inside (mm):	0/-0,012
Tolerance for outside (mm):	0/-0,015
Tolerance for width (mm):	0/-0,12
Contact Angle:	30
Rows Of Balls:	double row
Seal:	2RS
Ring Material:	Stainless Steel
Rolling Element Material:	Stainless Steel
Cage Material:	Stainless Steel
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	greased
Magnetic:	yes
Lifetime lubricated:	yes
Product weight:	1,4200 kg

Item number: SS-5309-2RS

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 90.88

pcs

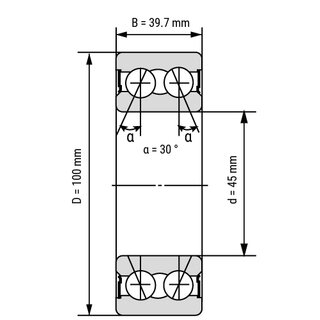

Technical Scribble
