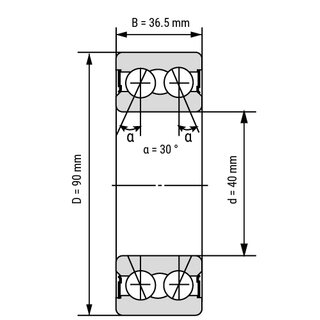

Stainless Steel Angular Ball Bearing SS 5308 2RS TN / SS 3308 2RS TN 40x90x36.5 mm

Double row design for higher load capacity. The double-row stainless steel angular contact ball bearing SS-5308-2RS-TN is ideal for high combined loads from the radial and axial directions and is resistant to corrosion. Main dimensions according to DIN 628-3.

Technical Data

Inside (mm):	40
Outside (mm):	90
Width (mm):	36.5
Tolerance for inside (mm):	0/-0,012
Tolerance for outside (mm):	0/-0,015
Tolerance for width (mm):	0/-0,12
Contact Angle:	30
Rows Of Balls:	double row
Seal:	2RS
Ring Material:	Stainless Steel
Rolling Element Material:	Stainless Steel
Cage Material:	Plastic
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	greased
Magnetic:	yes
Lifetime lubricated:	yes
Product weight:	1,0500 kg

Item number: SS-5308-2RS-TN

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 74.46

pcs
