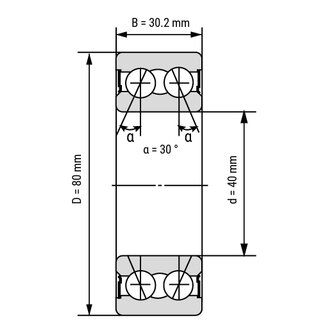

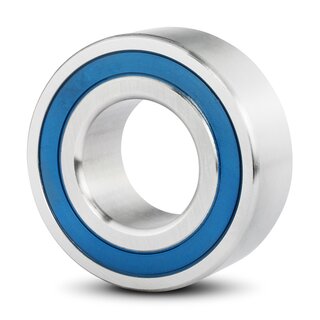

Stainless Steel Angular Ball Bearing SS 5208 2RS / SS 3208 2RS 40x80x30.2 mm

Double row design for higher load capacity. The double-row angular contact ball bearing SS-5208-2RS is ideal for high combined loads from the radial and axial directions. Main dimensions according to DIN 628-3.

Technical Data

Inside (mm):	40
Outside (mm):	80
Width (mm):	30.2
Tolerance for inside (mm):	0/-0,012
Tolerance for outside (mm):	0/-0,013
Tolerance for width (mm):	0/-0,12
Contact Angle:	30
Rows Of Balls:	double row
Seal:	2RS
Ring Material:	Stainless Steel
Rolling Element Material:	Stainless Steel
Cage Material:	Stainless Steel
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	greased
Magnetic:	yes
Lifetime lubricated:	yes
Product weight:	0,5700 kg

Item number: SS-5208-2RS

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 44.00

pcs

Technical Scribble

Technical Data

Inside (mm):	40
Outside (mm):	80
Width (mm):	30.2
Tolerance for inside (mm):	0/-0,012
Tolerance for outside (mm):	0/-0,013
Tolerance for width (mm):	0/-0,12
Contact Angle:	30
Rows Of Balls:	double row
Seal:	2RS
Ring Material:	Stainless Steel
Rolling Element Material:	Stainless Steel
Cage Material:	Stainless Steel
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	greased
Magnetic:	yes
Lifetime lubricated:	yes
Product weight:	0,5700 kg

Technical Scribble

Stainless Steel Angular Ball Bearing SS 5208 2RS / SS 3208 2RS 40x80x30.2 mm

Technical Data

Technical Scribble

Technical Data

SEND INQUIRY
