Stainless Steel Angular Ball Bearing SS 5205 2RS TN / SS 3205 2RS TN 25x52x20.6 mm

Double row design for higher load capacity. The double-row angular contact ball bearing SS-5205-2RS-TN is ideal for high combined loads from the radial and axial directions. Main dimensions according to DIN 628-3.

Technical Data

Inside (mm):	25
Outside (mm):	52
Width (mm):	20.6
Tolerance for inside (mm):	0/-0,01
Tolerance for outside (mm):	0/-0,013
Tolerance for width (mm):	0/-0,12
Contact Angle:	30
Rows Of Balls:	double row
Seal:	2RS
Ring Material:	Stainless Steel
Rolling Element Material:	Stainless Steel
Cage Material:	Plastic
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	greased
Magnetic:	yes
Lifetime lubricated:	yes
Product weight:	0,1900 kg

Item number: SS-5205-2RS-TN

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 30.82

pcs

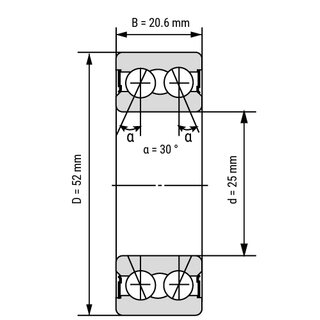

Technical Scribble

Technical Data

Inside (mm):	25
Outside (mm):	52
Width (mm):	20.6
Tolerance for inside (mm):	0/-0,01
Tolerance for outside (mm):	0/-0,013
Tolerance for width (mm):	0/-0,12
Contact Angle:	30
Rows Of Balls:	double row
Seal:	2RS
Ring Material:	Stainless Steel
Rolling Element Material:	Stainless Steel
Cage Material:	Plastic
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	greased
Magnetic:	yes
Lifetime lubricated:	yes
Product weight:	0,1900 kg
