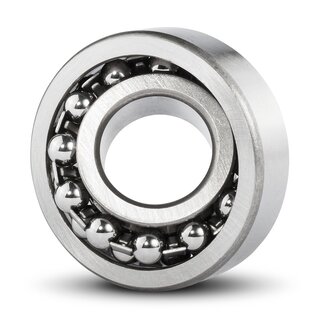

Stainless Steel Self-Aligning Ball Bearing SS 1208 40x80x18 mm

With the swiveling inner ring, the stainless steel self aligning ball bearing SS-1208 offers excellent alignment error compensation. With the two rings of barrel-shaped rollers, it can absorb high radial forces. It is resistant to corrosion. Main dimensions according to DIN 630.

Technical Data

Inside (mm):	40
Outside (mm):	80
Width (mm):	18
Tolerance for inside (mm):	0/-0,012
Tolerance for outside (mm):	0/-0,013
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	double row
Bore:	cylindrical
Extended Inner Ring:	nein
Seal:	open
Ring Material:	Stainless Steel
Rolling Element Material:	Stainless Steel
Cage Material:	Stainless Steel
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Permissible angular misalignment:	2.5
Product weight:	0,4170 kg

Item number: SS-1208

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 38.20

pcs

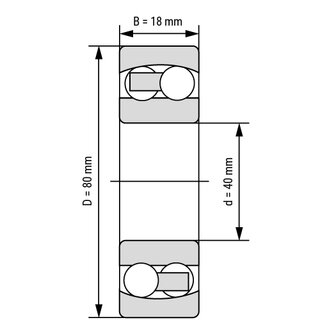

Technical Scribble

Technical Data

Inside (mm):	40
Outside (mm):	80
Width (mm):	18
Tolerance for inside (mm):	0/-0,012
Tolerance for outside (mm):	0/-0,013
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	double row
Bore:	cylindrical
Extended Inner Ring:	nein
Seal:	open
Ring Material:	Stainless Steel
Rolling Element Material:	Stainless Steel
Cage Material:	Stainless Steel
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Permissible angular misalignment:	2.5
Product weight:	0,4170 kg
