Technical Scribble

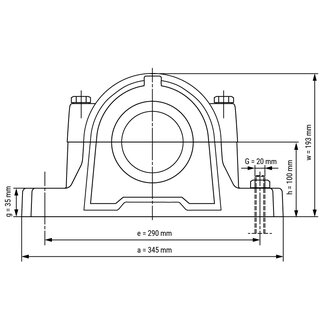

Split Pillow Block Housing SNL518-615 / Shaft: 80 mm
The divisible housing SNL518-615 is made out of die-cast and designed for the use of self-aligning ball bearings and spherical roller bearings.
Technical Data
| Inside (mm): | 80 |
| Tolerance for inside (mm): | 0/-0,015 |
| Tolerance for width (mm): | 0/-0,15 |
| Housing Type: | Plummer Block |
| Temperature Resistance: | -40 bis +100 ℃ |
| Housing Material: | Cast Iron |
| Tolerance Class: | ABEC 1 / P0 |
| Product weight: | 12,5000 kg |
Item number: SNL518-615
If your demand is large, please contact us for quotation and delivery time.
Delivery time:3 to 7 business day
$ 220.12
pcs
Technical Scribble
Technical Data
| Inside (mm): | 80 |
| Tolerance for inside (mm): | 0/-0,015 |
| Tolerance for width (mm): | 0/-0,15 |
| Housing Type: | Plummer Block |
| Temperature Resistance: | -40 bis +100 ℃ |
| Housing Material: | Cast Iron |
| Tolerance Class: | ABEC 1 / P0 |
| Product weight: | 12,5000 kg |
