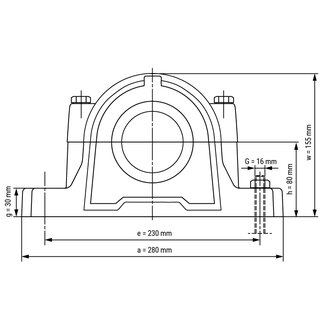

Split Pillow Block Housing SNL215 / Discontinued Shaft: 85 / 75 mm
The divisible housing SNL215 is made out of die-cast and designed for the use of self-aligning ball bearings and spherical roller bearings.
Technical Data
| Inside (mm): | 75 |
| Inside Seal (mm): | 85 |
| Tolerance for inside (mm): | 0/-0,015 |
| Tolerance for width (mm): | 0/-0,15 |
| Housing Type: | Plummer Block |
| Temperature Resistance: | -40 bis +100 ℃ |
| Housing Material: | Cast Iron |
| Tolerance Class: | ABEC 1 / P0 |
| Product weight: | 6,6000 kg |
Item number: SNL215
If your demand is large, please contact us for quotation and delivery time.
Delivery time:3 to 7 business day
$ 122.18
pcs
Technical Scribble
Technical Data
| Inside (mm): | 75 |
| Inside Seal (mm): | 85 |
| Tolerance for inside (mm): | 0/-0,015 |
| Tolerance for width (mm): | 0/-0,15 |
| Housing Type: | Plummer Block |
| Temperature Resistance: | -40 bis +100 ℃ |
| Housing Material: | Cast Iron |
| Tolerance Class: | ABEC 1 / P0 |
| Product weight: | 6,6000 kg |
