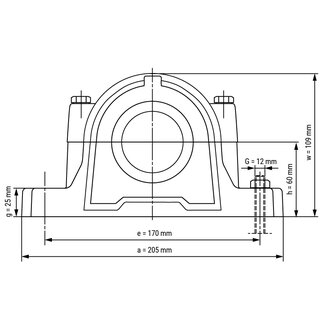

Split Pillow Block Housing SNL209 / Discontinued Shaft: 55 / 45 mm
The divisible housing SNL209 is made out of die-cast and designed for the use of self-aligning ball bearings and spherical roller bearings.
Technical Data
| Inside (mm): | 45 |
| Inside Seal (mm): | 55 |
| Tolerance for inside (mm): | 0/-0,012 |
| Tolerance for width (mm): | 0/-0,12 |
| Housing Type: | Plummer Block |
| Temperature Resistance: | -40 bis +100 ℃ |
| Housing Material: | Cast Iron |
| Tolerance Class: | ABEC 1 / P0 |
| Product weight: | 2,7500 kg |
Item number: SNL209
If your demand is large, please contact us for quotation and delivery time.
Delivery time:3 to 7 business day
$ 69.30
