Rod End - Requiring Maintenance SI8E open 8x24x8 mm

The rod end SI8E without seals requires maintenance. It has a sliding contact surface combination steel/steel and is suitable for heavy static loads as well as for shock loads. It has an internal thread. The main dimensions correspond to DIN 648 — series E (DIN = German industrial norm).

Technical Data

Inside (mm):	8
Outside (mm):	24
Width (mm):	8
Tolerance for inside (mm):	0/-0,008
Tolerance for width (mm):	0/-0,12
Seal:	open
Ring Material:	Rolling bearing steel
Maintenance:	Requiring Maintenance
Tolerance Class:	ABEC 1 / P0
Mounting:	inner thread (right thread)
Sliding Contact Surface Combination:	steel/steel
Product weight:	0,0390 kg

Item number: SI8E

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 4.84

pcs

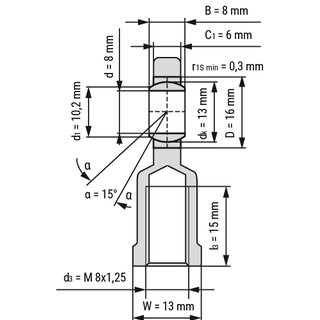

Technical Scribble
