Rod End - Requiring Maintenance SI60ES 2RS 60x135x44 mm

The rod end SI60ES-2RS with seals on both sides requires maintenance. It has a sliding contact surface combination steel/steel and is suitable for heavy static loads as well as for shock loads. It has an internal thread. The main dimensions correspond to DIN 648 – series E (DIN = German industrial norm).

Technical Data

Inside (mm):	60
Outside (mm):	135
Width (mm):	44
Tolerance for inside (mm):	0/-0,015
Tolerance for width (mm):	0/-0,15
Seal:	2RS
Ring Material:	Rolling bearing steel
Maintenance:	Requiring Maintenance
Tolerance Class:	ABEC 1 / P0
Mounting:	inner thread (right thread)
Sliding Contact Surface Combination:	steel/steel
Product weight:	5,9000 kg

Item number: SI60ES-2RS

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 133.77

pcs

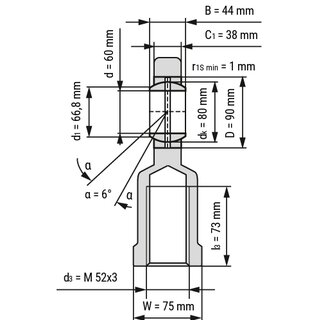

Technical Scribble

Technical Data

Inside (mm):	60
Outside (mm):	135
Width (mm):	44
Tolerance for inside (mm):	0/-0,015
Tolerance for width (mm):	0/-0,15
Seal:	2RS
Ring Material:	Rolling bearing steel
Maintenance:	Requiring Maintenance
Tolerance Class:	ABEC 1 / P0
Mounting:	inner thread (right thread)
Sliding Contact Surface Combination:	steel/steel
Product weight:	5,9000 kg
