Technical Scribble

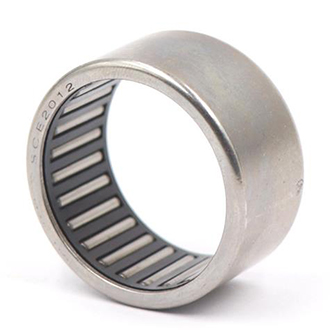

SCE57-PP 0.3125"x0.5"x0.4375"
Technical Data
| Bearing Type | Roller |
| Roller Bearing Type | Needle |
| For Load Direction | Radial |
| Construction | Single Row |
| End | Open |
| System of Measurement | Inch |
| Seal Type | Double seals |
| Part Number | SCE57-PP |
| For Shaft Diameter | 5/16 " |
| Bore Dia (d) | 5/16 " | 7.9375 mm |
| Bore Dia Tolerance | Refer to note on the right drawing |
| For Housing ID | 12.7mm |
| Outer Dia (D) | 0.5" | 12.7mm |
| Outer Dia Tolerance | Not Rated |
| Width (B) | 0.4375" | 11.112mm |
| Width Tolerance | -0.01" to 0" |
| Ring Material | steel |
| Ball Material | steel |
| Cage Material | steel |
| Dynamic Load Rating (Cr) (Newtons) | 2900 N |
| Static Load Rating (Cor) (Newtons) | 2600 N |
| Max Speed (Grease) (RPM) | 29000 |
| Lubrication | Required |
| Lubricant | Grease |
| Shaft Mount Type | Press Fit |
| Temperature Range | -20 to 110 ? |
| RoHS | Compliant |
| Weight (grams) | 4 |
Item number: SCE57-PP
If your demand is large, please contact us for quotation and delivery time.
Delivery time:3 to 7 business day
price:Inquiry
