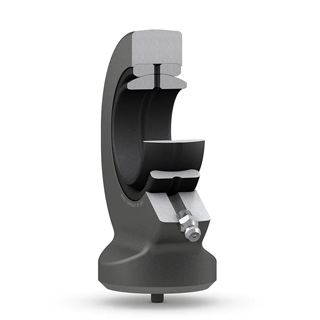

SC-30-ES 30 mmx75 mmx22 mm

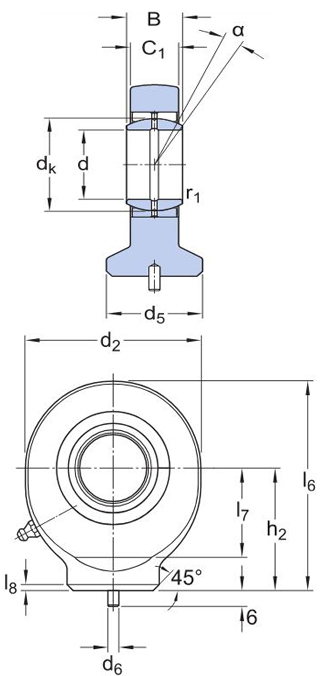

Technical Data

d	30 mm	Bore diameter
d2	max.75 mm	Diameter head
B	22 mm	Width inner ring
C1	max.20 mm	Width head
h2	51 mm	Height shank end face - centre rod end eye
α	6 °	Angle of tilt
dk	40.7 mm	Raceway diameter inner ring
d5	max.42 mm	Diameter welding shank
d6	4 mm	Diameter centering pin at welding shank end
l6	max.89 mm	Length (height) housing
l7	min.34 mm	Distance shank chamfer - centre rod end eye
l8	3 mm	Length chamfer at welding shank end
r1	min.0.6 mm	Chamfer dimension bore
